Storyboard Suite HMI Round-up from CES 2016

Jan 18, 2016 10:44:01 AM

CES_2016

CES 2016 was earlier this month and we're still reeling from trying to take in the sheer volume of innovative technology that was showcased. It's mind-blowing just how much you can fit in a paltry 2.2 million net square feet of exhibit space. If you were at the show, we forgive you if you didn't catch the Storyboard Suite HMI demos, especially given hoverboards were banned, leaving you to walk a million miles to see everything.

Don't despair. We have photos and video to share from the show.

Photos & Video from Storyboard Suite Automotive and IoT HMI Demos

From innovative digital instrument clusters to in-vehicle infotainment (IVI) systems, Storyboard Suite automotive HMI demos were showcased in many booths at CES, including VisteonTexas Instruments, QNX Software Systems, and others.

This quick Vine video from Visteon shows a dual OLED display with an innovative HMI designed in Storyboard Suite, with a second display remaining hidden until additional content is required:

This Periscope video from Texas Instruments shows a digital instrument cluster designed with Storyboard Suite:



Digital Instrument Clusters Photos

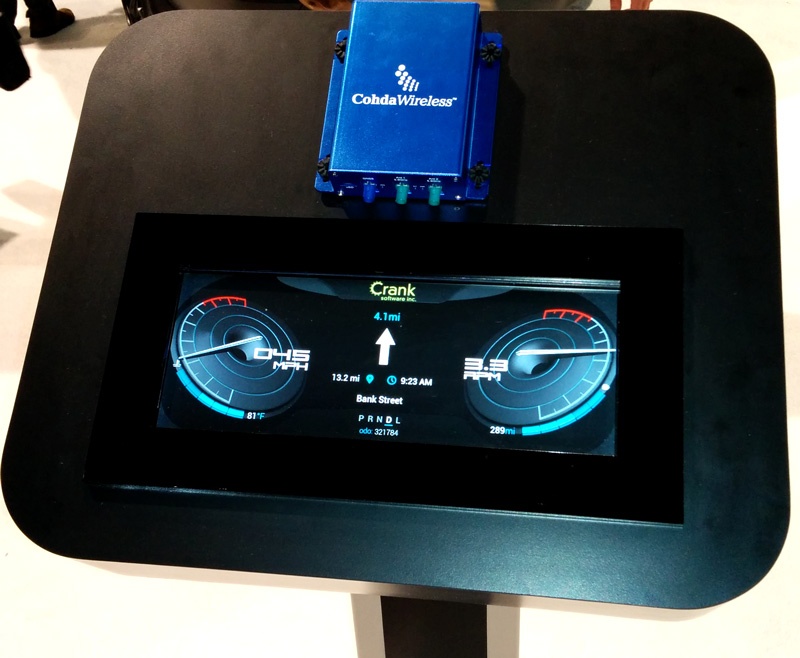

QNX This Digital Instrument Cluster was one of two clusters designed with Crank Storyboard Suite as part of the QNX Software Systems interactive command center at CES, which showcased vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) technology.

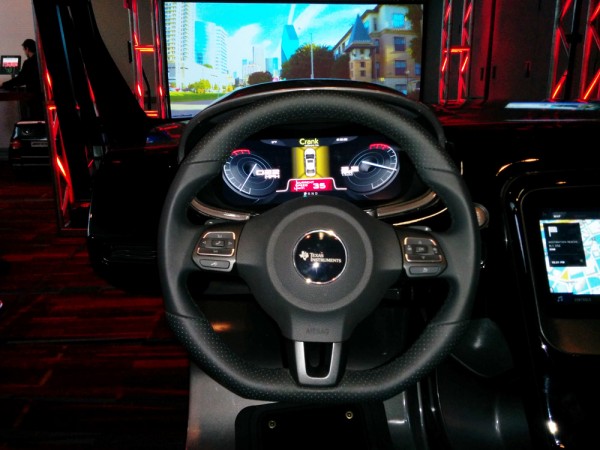

TICrankCESCluster Texas Instruments EvoCar Digital Instrument Cluster designed with Crank Storyboard Suite



Home Automation Photos

CES 2016 highlighted the best in smart home technologies, and we are thrilled that Storyboard Suite was behind exciting home automation demos at the event. NXP’s Internet of Tomorrow Tour, a giant trailer housing over 100 demos, showcased a home automation demo designed for FTF2015 by Crank Software and Freescale. In addition, our friends at Atmel demoed a home automation application designed with Storyboard Suite.



NXPIoTTruckCrank NXP Internet of Tomorrow Tour - Storyboard Suite home automation demo





AtmelCrankCES Storyboard Suite home automation demo on the Atmel SAMA5D4, featuring video playback



The Crank Software demos at CES 2016 were created with the (very) soon-to-be-released Storyboard Suite 4.2 version, which will deliver new exciting functionality for GUI designers working with 3D graphics, including FBX support to enable integration of animated 3D models in Storyboard Designer, and support for advanced 3D multi-mesh models. We’ve further streamlined the design experience with group templates, multi-step animation recording, and a new Animation Preview that gives designers the capability to quickly view changes to animations directly in Storyboard Designer.

To find out more about what to expect in the Storyboard Suite 4.2 release, check out our recent webinar, now available on-demand.
